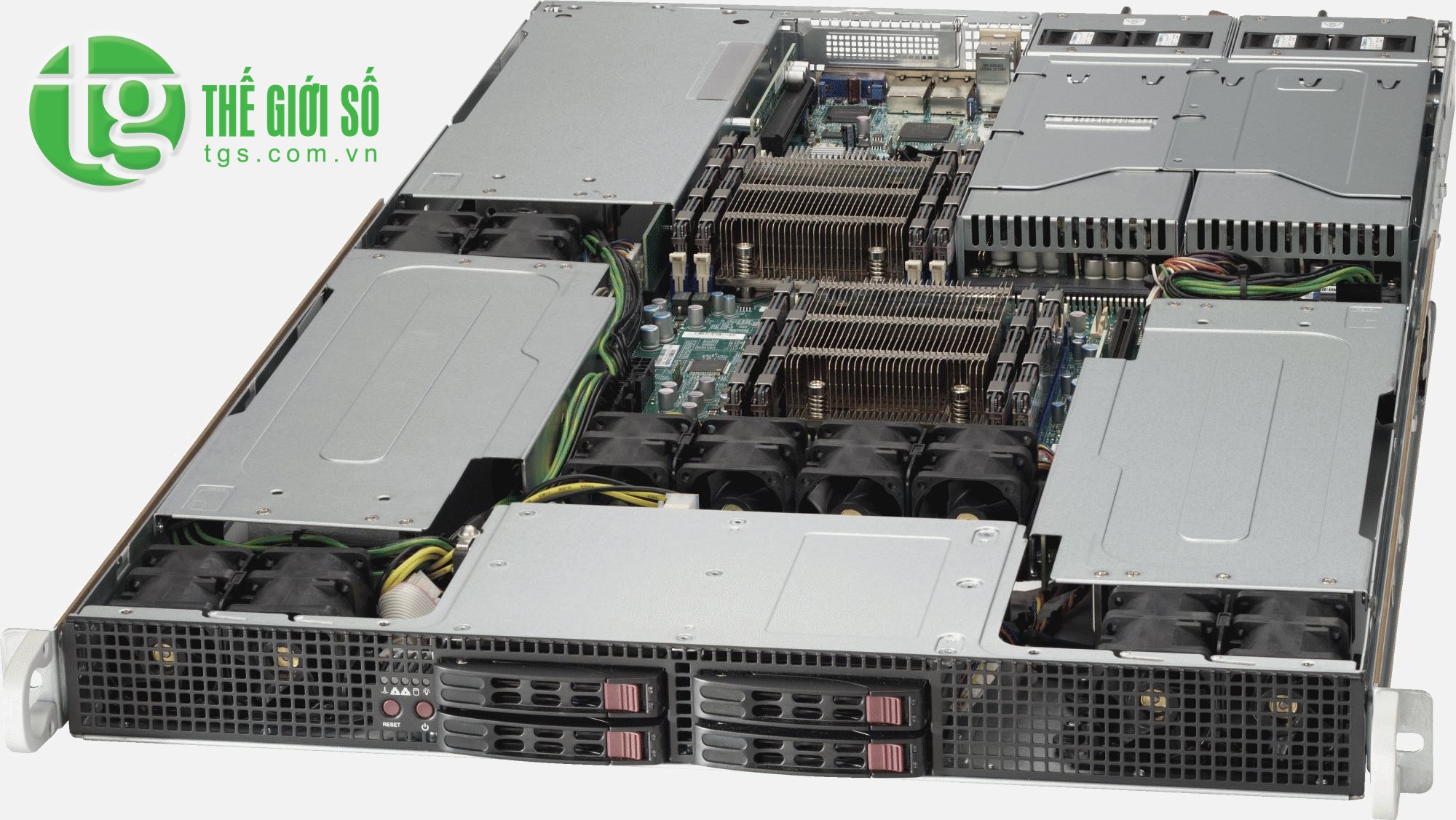

SERVER SuperServer Cloud Gaming 1027GR-TRF-CG


Số lượng:
Giá bán: 0 VND

SERVER SuperServer Cloud Gaming 1027GR-TRF-CG CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI THẾ GIỚI SỐ

KEY FEATURES MÁY CHỦ SERVER SuperServer Cloud Gaming 1027GR-TRF-CG

CDNCLOUD COMPUTINGHOSTING & APPLICATION DELIVERYWEB CACHEWEB SERVER

1. Dual Intel® Xeon® processor E5-2670 installed; QPI up to 8.0 GT/s
2. 64GB DDR3 ECC reg. memory included, can be expanded to 256GB; 8x DIMM sockets
3. 3x GRID K520/K340 cards (optional), 1x PCI-E 3.0 x8 (in x16) low-profile slot
4. Integrated IPMI 2.0 with KVM and Dedicated LAN
5. Intel® i350 Dual-Port GbE Controller
6. 4x Hot-swap 2.5" SATA Drive Bays
7. 1800W Redundant Power Supplies Platinum Level (94%+)
8. 10x Counter rotating fans w/ optimal fan speed control
9. Smart server management tools





Integrated Board

X9DRG-HF-CG


Available Color: Black


Product SKUs
SYS-1027GR-TRF-CG * SuperServer 1027GR-TRF-CG (Black)
Motherboard
Super X9DRG-HF-CG
Processor/Cache
CPU * Dual Intel® Xeon® processor E5-2670 installed (115W TDP)
*
System supports up to 130W TDP
*
Dual Socket R (LGA 2011)
Cache * Up to 20MB
System Bus * QPI up to 8 GT/s
System Memory
Memory Capacity * 8x 240-pin DDR3 DIMM sockets
* 64GB (8x 8GB DIMMs) DDR3 ECC Registered memory included, support up to 256GB (8x 32GB DIMMs)
Memory Type * 1600/1333/1066MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes * 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage * 1.5 V, 1.35 V
Error Detection * Corrects single-bit errors
* Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset * Intel® C602 Chipset
SATA * SATA 2.0 3Gbps with RAID 0, 1, 5, 10
* SATA 3.0 6Gbps with RAID 0, 1
IPMI * Support for Intelligent Platform Management Interface v.2.0
* IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
* Nuvoton WPCM450 BMC
Network Controllers * Intel® i350 Dual Port Gigabit Ethernet
* Virtual Machine Device Queues reduce I/O overhead
* Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
* 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics * Matrox G200eW
Input / Output
SATA * 2 SATA 3.0 ports (6Gbps)
* 2 SATA 2.0 ports (3Gbps)
LAN * 2x RJ45 Gigabit Ethernet LAN ports
* 1x RJ45 Dedicated IPMI LAN port
USB * 2x USB 2.0 ports
Video * 1 VGA Connector
Keyboard/Mouse * 1 PS/2 Keyboard/Mouse port
Serial Port * 1 Serial header
Chassis
Form Factor * 1U Rackmount
Model * CSE-118GQ-R1800B
Dimensions
Height * 1.7" (43mm)
Width * 17.2" (437mm)
Depth * 31" (787mm)
Gross Weight * 48 lbs (21.8 kg)
Available Colors * Black
Front Panel
Buttons * Power On/Off button
* System Reset button
LEDs * Power LED
* Hard drive activity LED
* 2x Network activity LEDs
* System Overheat LED / Fan fail LED /
* UID LED
Expansion Slots
PCI-Express * 3x PCI-E 3.0 x16 slots
   (support GPU cards)
* 1x PCI-E 3.0 x8 (in x16) low-profile slot
* UIO AOC Compatibility Matrix
Drive Bays
Hot-swap * 4x 2.5" Hot-swap drive bays
System Cooling
Fans * 10x counter-rotating fans with optimal fan speed control
Power Supply
1800W (1+1) Redundant 1800W power supply with PMBus
AC Input * 1000W Output @ 100-120V, 12-10A, 50-60Hz
* 1200W Output @ 120-140V, 12-10A, 50-60Hz
* 1800W Output @ 200-240V, 10-8.5A, 50-60Hz
DC Output * 1000W: +12V/84A; +5Vsb/4A
* 1200W: +12V/100A; +5Vsb/4A
* 1800W: +12V/150A; +5Vsb/4A
Certification Platinum Level Certified94%+    Platinum Certified
System BIOS
BIOS Type * 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features * Plug and Play (PnP)
* APM 1.2
* DMI 2.3
* PCI 2.2
* ACPI 1.0 / 2.0
* USB Keyboard support
* Hardware BIOS Virus protection
* SMBIOS 2.3
* UEFI
* RTC (Real Time Clock) Wakeup
PC Health Monitoring
CPU * Monitors for CPU Cores,+1.5V, +3.3V, +5V, +12V, +5 Stdby, +3.3 Stdby, VBAT, Memory Voltages.
* CPU Core 6-Phase-switching voltage regulator
FAN * Total of ten 4-pin PWM fans
* 10x fans with tachometer monitoring
* Status monitor for speed control
* Status monitor for on/off control
* Low noise fan speed control
Temperature * Monitoring for CPU and chassis environment
* CPU thermal trip support
* Thermal Control for 10x Fan Connectors
* PSU I2C temperature sensing logic
* Thermal Monitor 2 (TM2) support
* PECI
LED * Power Fail / Overheat LED
* Suspend-state Indicator LED
* UID LED
Other Features * SDDC Support
Operating Environment / Compliance
RoHS * RoHS Compliant
Environmental Spec. * Operating Temperature: 10°C to 35°C (50°F to 95°F)
* Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
* Operating Relative Humidity: 8% to 90% (non-condensing)
* Non-operating Relative Humidity: 5% to 95% (non-condensing)




Parts List

Parts List - (Items Included)
  Part Number Qty Description
Motherboard / Chassis MBD-X9DRG-HF-CG 1 Super X9DRG-HF-CG Motherboard
CSE-118GQ-R1800B 1 1U Black SC118GQ Chassis
Air Shroud MCP-310-11802-0N 1 Air Shroud for X9DRG used in SC118GQ-R1800B
Backplane BPN-SAS-118G-4 1 SAS-118G-4; supports 4X2.5" SATA HDD,
Cable 1 CBL-0333L 3 6+2 pin to 8 pin GPU power extension from MB, 30cm. 18/20AWG
Cable 2 CBL-0228L 2 55CM SATA ROUND S-RA PBF 26AWG
Cable 3 CBL-0296L 5 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
Cable 4 CBL-0227L 1 48CM SATA ROUND S-RA PBF.26AWG
Cable 5 CBL-0460L 1 8 Pin to Two 4 Pin Backplane Power Ext. 28/22cm. 18AWG
Cable 6 CBL-0157L-02 1 8 pin to 8 pin ribbon SGPIO cable with tube, 27cm, PBF
Cable 7 CBL-0207L 1 59CM SATA ROUND S-S PBF.26AWG
Riser Card RSC-R1UG-E16A-X9 1 RSC-R1UG-E16A-X9-O-P
Riser Card RSC-R1UG-E16AR-X9 1 A Right Hand Side Riser Card with PCI-E x16
Riser Card RSC-R1UG-E16B-X9 1 RSC-R1UG-E16B-X9-O-P
Riser Card RSC-R1UG-E16R-X9 1 A 1U Right Hand Side Riser Card with PCI-E x16
Heatsink / Retention SNK-P0047PSC 1 1U Passive Front CPU Heat Sink for X9DRG-HF 1U GPU Server
Heatsink / Retention SNK-P0047PS 1 1U Passive CPU Heat Sink for X9 Generation Motherboards w/ Narrow ILM
Power Supply PWS-1K81P-1R 2 1800W Platinum Redundant Single Output
Cable 8 CBL-0160L 2 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
Fan 1 FAN-0141L4 10 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan
Drive Tray(s) MCP-220-00047-0B 4 Black gen 3rd hot-swap 2.5inch HDD tray
Mounting Rails MCP-290-00054-0N 1 set Rail set, quick/quick, optional for 1U 17.2




Optional GPU Integrated Configuration (all components below are included in the preconfigured solution)
  Part Number Qty Description
CPU P4X-DPE52670-SR0KX 2 SANDY B. R 8C E5-2670 2.6G 20M 8GT 115W 2011 C2
Memory MEM-DR380L-SL01-ER16 8 8GB DDR3-1600 1.5V 2Rx4 LP ECC REG DIMM
Add-on Card AOC-GPU-NVK340/520-RL 2 NVIDIA GRID Gaming K340/K520 4GB GDDR5 Airflow R2L
Add-on Card AOC-GPU-NVK340/520-LR 1 NVIDIA GRID Gaming K340/K520 4GB GDDR5 Airflow L2R
