SERVER MicroCloud SuperServer 5037MC-H86RF


Số lượng:
Giá bán: 0 VND

SERVER MicroCloud SuperServer 5037MC-H86RF CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠITHẾ GIỚI SỐ

KEY FEATURES MÁY CHỦ SERVER MicroCloud SuperServer 5037MC-H86RF

CDNCLOUD COMPUTINGHOSTING & APPLICATION DELIVERYWEB CACHEWEB SERVER

Key Features (per node)
1. Intel® Xeon® processor E3-1200 v2 series, Intel® 2nd Gen. Core i3 and Intel® Pentium® family processors; socket H2 (LGA 1155)***
2. 2x 3.5" Hot-swap SAS/SATA with selected RAID/HBA card
3. 1 (x8) PCI-E 3.0*** low-profile slot
4. Up to 32GB DDR3 ECC 1333MHz / 1600MHz*** UDIMMs in 4 sockets
5. 2x GbE LAN ports via Micro-LP NIC, 1x Dedicated LAN for IPMI Remote Management
6. 4x 8cm Heavy duty fans with optimal cooling zone
7. 1620W Redundant 80Plus Platinum Level power supplies




Integrated Board

Super X9SCD+-HF



Drivers & Utilities  BIOS  IPMI  Tested MEM  Tested HDD  Manuals  OS Certification Matrix


Product SKUs
SuperServer * SYS-5037MC-H86RF (Black)
Motherboard
Motherboard * MBD-X9SCD+-HF
Processor/Cache
CPU * Intel® Xeon® processor E3-1200 v2 series, Intel® 2nd Generation Core i3 & Intel® Pentium® family processors***
* Socket H2 (LGA 1155)
System Memory (per node)
Memory Capacity * 4x 240-pin DDR3 DIMM sockets
* Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type * 1333/1066MHz ECC DDR3, 240-pin gold-plated DIMMs
DIMM Sizes * 8GB, 4GB, 2GB, 1GB
Memory Voltage * 1.5 V
Error Detection * Corrects single-bit errors
* Detects double-bit errors (using ECC memory)
On-Board Devices (per node)
Chipset * Intel® C204 PCH chipset*
SATA * 1x SATA DOM
IPMI * Support for Intelligent Platform Management Interface v.2.0
* IPMI 2.0 with virtual media over LAN and KVM over LAN support
* Winbond® WPCM450 BMC
Headers * 1 USB header & 1 Type A USB, TPM ready
Graphics * Matrox G200eW 16MB DDR2
Super I/O * Nuvoton WPCM450RA0BX
Network Devices (per node)
Micro-LP NIC * Intel® 82580DB, 2x Gigabit LAN ports
* iSCSI boot and PXE support
* Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
* Intel® I/OAT 3 support for fast, scaleable, and reliable networking
* VMDq support for better performance of virtualization
Expansion Slots (per node)
PCI-Express * 1 (x8) PCI-E 2.0 low-profile slot
MicroLP Adapter Matrix
Input / Output (per node)
Serial ATA * 2x SAS/SATA ports with selected AOC
LAN * 2x RJ45 Gigabit Ethernet LAN ports
* 1x RJ45 Dedicated IPMI LAN port
KVM * 1x VGA, 1x COM, and 2x USB 2.0 ports
System BIOS
BIOS Type * 64Mb SPI Flash EEPROM with AMI BIOS
BIOS Features * Plug and Play (PnP)
* APM 1.2
* ACPI 1.0 / 2.0
* USB Keyboard support
* SMBIOS 2.3
* RTC (Real Time Clock) Wakeup
Rear Window (each node)
Switch * Power / UID
Chassis
Form Factor 3U
Model CSE-938H-R1620B
Dimensions
Height 5.21" (132.5 mm)
Width 17.26" (438.4 mm)
Depth 23.2" (589 mm)
Weight 62.2 lbs (28.21 kg) - barebone
Color Black

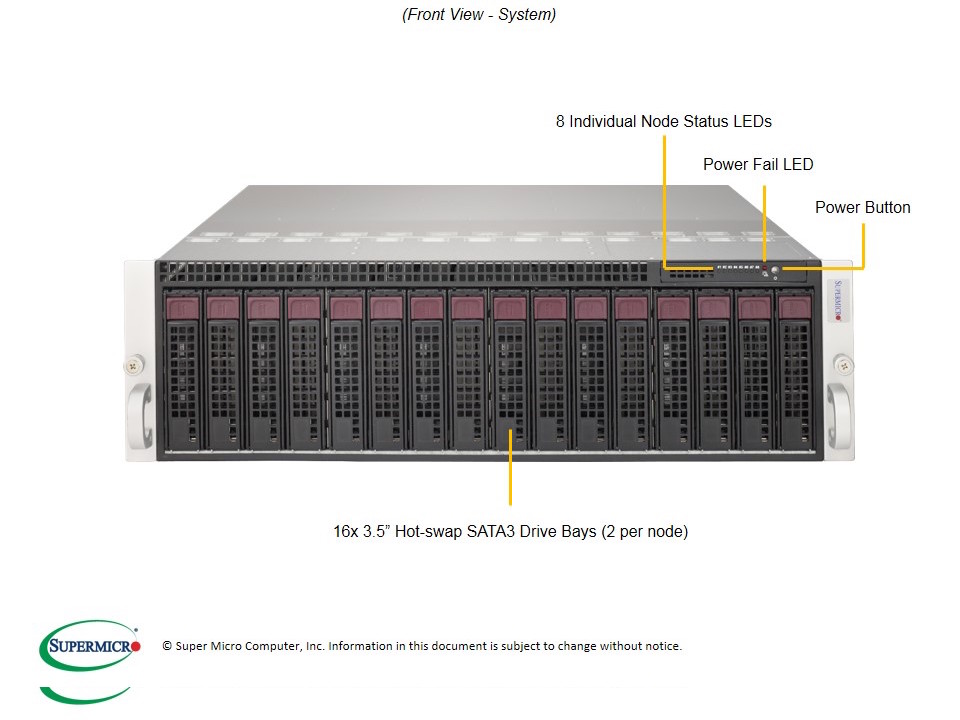

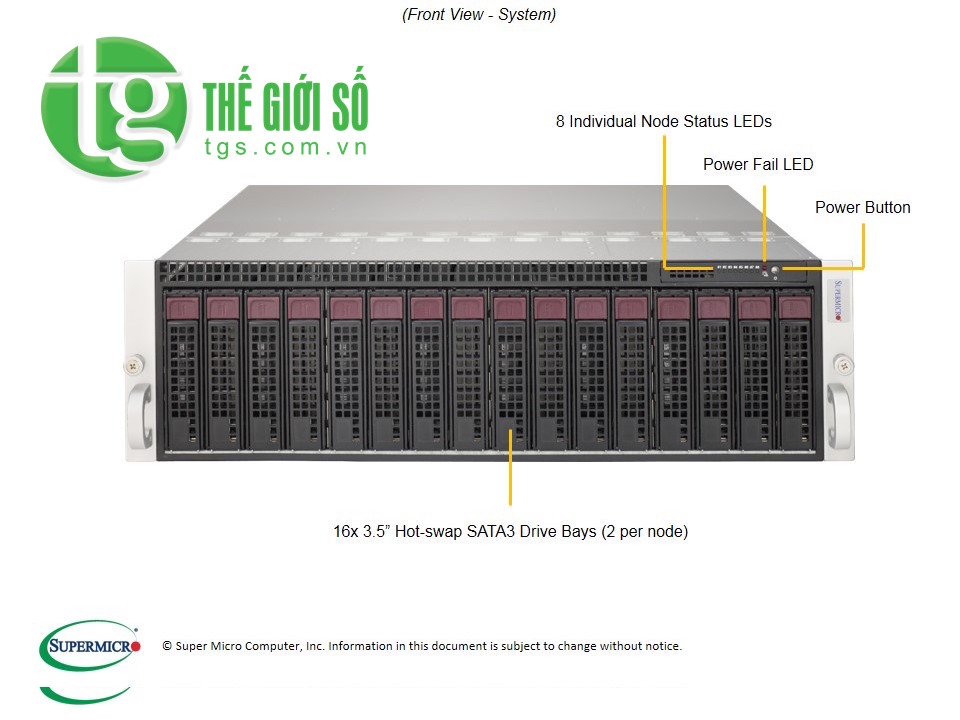

Front Panel
Buttons * Power On/Off button
LEDs * Power LED
* Hard drive activity LED
* Network activity LED
* System Overheat LED
* UIO LED
Drive Bays
Hot-swap * 2x 3.5" hot-swap SAS/SATA3 (6Gbps) HDDs per node; up to 16 HDDs total
* With selected HDD AOC, supports 2x SAS or SATA3 (6Gbps) via backplane
* SAS or enterprise SATA HDD only recommended
System Cooling
Fans * 4x 8cm Heavy duty fans with optimal cooling zone
Power Supply
1620W high-efficiency redundant power supply
AC Input 1000W: 100-120 V, 50-60 Hz, 12-10 Amp
1200W: 120-140 V, 50-60 Hz, 12-10 Amp
1620W: 180-240 V, 50-60 Hz, 10.5-8 Amp
DC Output
+5V standby
4 Amp
DC Output
+12V
1000W: 84 Amp
1200W: 100 Amp
1620W: 135 Amp
Certification 80PLUS Platinum94%+ 80PLUS
Platinum Certified

[ Test Report ]
PC Health Monitoring
CPU * Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
* 6-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN * Cooling zone
Temperature * Monitoring for CPU and chassis environment
Operating Environment / Compliance
RoHS * RoHS Compliant
Environmental Spec. * Operating Temperature: 10°C to 35°C (50°F to 95°F)
* Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
* Operating Relative Humidity: 8% to 90% (non-condensing)
* Non-operating Relative Humidity: 5% to 95% (non-condensing)




Parts List

Parts List
  Part Number Qty Description
Motherboard / Chassis MBD-X9SCD+-HF 8 Super X9SCD+-HF Motherboard
CSE-938H-R1620B 1 3U Chassis
Cable 1 CBL-0218L 1 11.5CM KVM/SUVI 36PIN TO 9PIN/15PIN/2USB
Heatsink / Retention SNK-P0047PS+ 8 Customized Passive CPU Heat Sink for Micro Cloud Series Servers
Backplane BPN-SAS-938H 1 Backplane for SC938, 16x 3.5" SAS/SATA
Micro-LP NIC AOC-CG-i2-O-P 8 AOC-CG-I2-O-P
Riser Card RSC-RR1U-E8-O-P 8 RSC-RR1U-E8 (Rev 3.10)
Mounting Rails MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2"W
Power Supply PWS-1K62P-1R 2 1620W REDUNDANT POWER MODULE




Optional Parts List
  Part Number Qty Description
HDD Converter MCP-220-93801-0B - Black Hotswap Gen 6 3.5" to 2.5" HDD Tray (SC747, 936, 938 and Blade)
Add On Card AOC-SAS2LP-H8iR - 2108 based SAS/SATA RAID- 8 internal ports/Low profile-PCI-E
Add On Card AOC-S2308L-L8i - STD Gen-3 PCI-e at 8Gb/s, 6Gb/s SAS, 8 internal ports, low profile, RAID 0, 1
Cable CBL-0476L - For AOC-SAS2LP-H8iR
Cable CBL-0118L-03 - For AOC-S2308L-L8i
