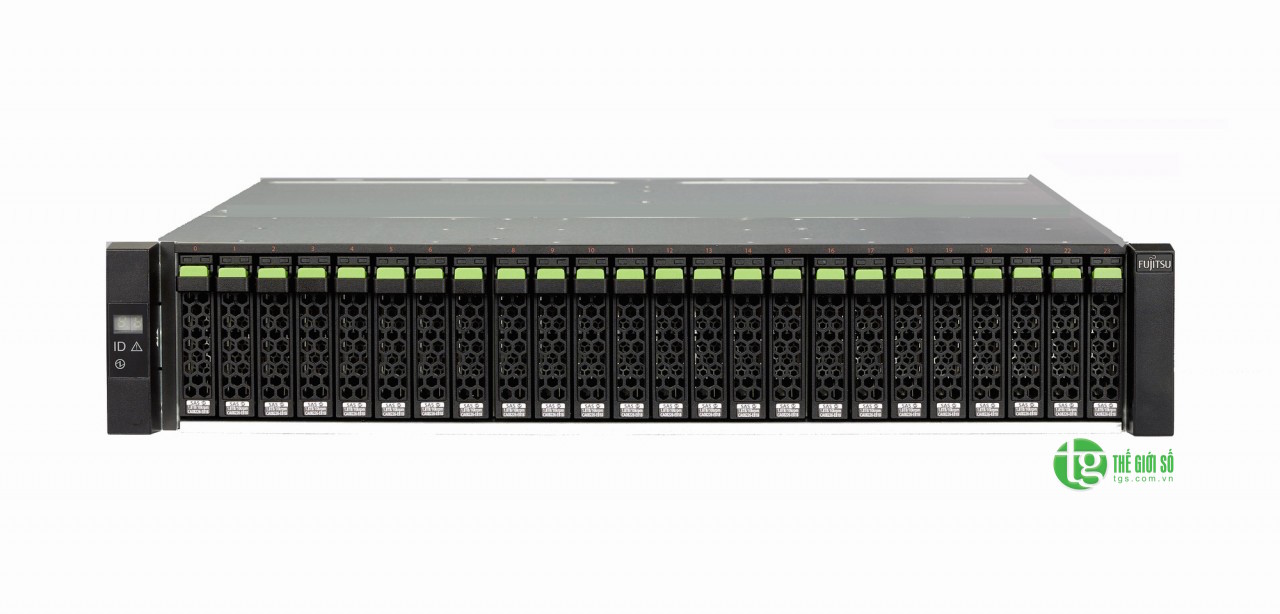

Server Fujitsu Storage ETERNUS DX100 S3

Mã sản phẩm: Vui lòng liên hệ
Số lượng:
Giá bán: 0 VND


KEY FEATURES Server Fujitsu Storage ETERNUS DX100 S3

Fujitsu Storage ETERNUS DX100 S3



SAN DX100 - ET DX100 S3 Base 2.5
ET103AU ET DX100 S3 Base 2.5 1
  ETERNUS DX100 S3 (2.5inch, without controller Module) 1x 2.5" Controller Enclosure 1x Rackmount Kit CD  Manual
ETFM41U DX100 S3 cache memory 4GB 2
ETFNA1 DX1/200S3 HD NLSAS 1TB 7.2 2.5 x1 6
ETFKC30U DX60/1/200 S3 Pwr Cable IEC C13-C14 3m x2 1
B0214G2H0H ETERNUS EMPD V2 (Linux) 1
B025C1020H ETERNUS EMPD V2 Entry (Windows) 1
ETFCF4C DX100 S3 Contr.x2 FC 4Port 8G 1

Technical details

General system information
  2.5-inch Controller Enclosure 3.5-inch Controller Enclosure
No. of controllers 1/2
No. of host interfaces 2/4/8 ports [FC, iSCSI, FCoE, SAS, Ethernet(10Gbit/s)], 4/8/16 ports [Ethernet(1Gbit/s)]
Maximum Cache Capacity 8 GB (block) / 8 GB + 8 GB (block + file)
Extreme Cache Pool 800 GB
Maximum Disk Drives 144
Max. no. of drive enclosures 10
Note 5 with all 2.5” DE, 10 with all 3.5” DE, 2 with  HD-DE or mixture of DEs up to Max no. Drives
Redundancy RAID Controller (in 2-controller configuration)
Power supply
Supported RAID levels 0, 1, 1+0, 5, 5+0, 6
Host Interfaces Fibre Channel (16 Gbit/s, 8 Gbit/s, 4 Gbit/s)
FCoE (10 Gbit/s)
iSCSI (10 Gbit/s, 1 Gbit/s)
Ethernet (10 Gbit/s, 1 Gbit/s)
SAS (6 Gbit/s, 3 Gbit/s)
Mixed host interfaces Yes
Max. no. of hosts 1,024
Supported NAS protocols CIFS (SMB  2.0), CIFS (SMB  3.0),  NFSv2, NFSv3
Maximum Storage Capacity 864 TB
Drive Type 2.5-inch, SAS, 15,000 rpm (600 GB / 300 GB)
2.5-inch, SAS, 10,000 rpm (1,200 GB / 900 GB / 600 GB / 300 GB)
2.5-inch, SAS (self-encrypting), 10,000 rpm (1,200 GB / 900 GB)
2.5-inch, Nearline SAS, 7,200 rpm (1 TB)
2.5-inch, SSD (1,600 GB / 800 GB / 400 GB)
3.5-inch, Nearline SAS, 7,200 rpm (6 TB / 4 TB / 3 TB / 2 TB)
3.5-inch, SSD (1,600 GB / 800 GB / 400 GB) HDDE, SAS, 10,000 rpm (1.2 TB)
HDDE, Nearline SAS, 7,200 rpm (4 TB / 3 TB / 2 TB)
Note 2.5-inch drives are available only for 2.5-inch drive enclosures and 3.5-inch drives are available only for 3.5-inch drive enclosures
Max. no. of SSDs unlimited
Mixed 2.5 inch/ 3.5 inch drive enclosures Yes
Drive interface Serial Attached SCSI (12 Gbit/s)
Back-end disk connectivity 1 pair of four-lane x 12 Gbit/s Serial Attached SCSI buses (SAS 3.0 wide)
Max. no. of LUNs 2,048
Max.  LUN capacity 128  TB
Eco-mode Yes
Thin Provisioning Yes
Quality of Service Yes


Business Continuity Features
No. of snapshots - max. 1,024
Max. no. of copy generations 512
Remote Copy functionality Synchronous and asynchronous
Data protection features Cache Protection,  Data Block Guard, Data Encryption, Dedicated  Hot Spare, Disk Drive Patrol, Global Hot Spare, Fast Recovery
Security features HTTPS (SSL), One Time Password, RADIUS, SSH


Storage Cluster Yes
Automated QoS Yes
Automated Storage Tiering Yes
Reporting function Yes
Note Options can be activated via ETERNUS SF Software


Dynamic configuration
Field model upgrade to ETERNUS DX200 S3
Non-disruptive firmware upgrade Yes
RAID migration Yes
LUNonline expansion w/o interruption Yes
Wide striping Yes
Hot part replacement/ expansion Yes
