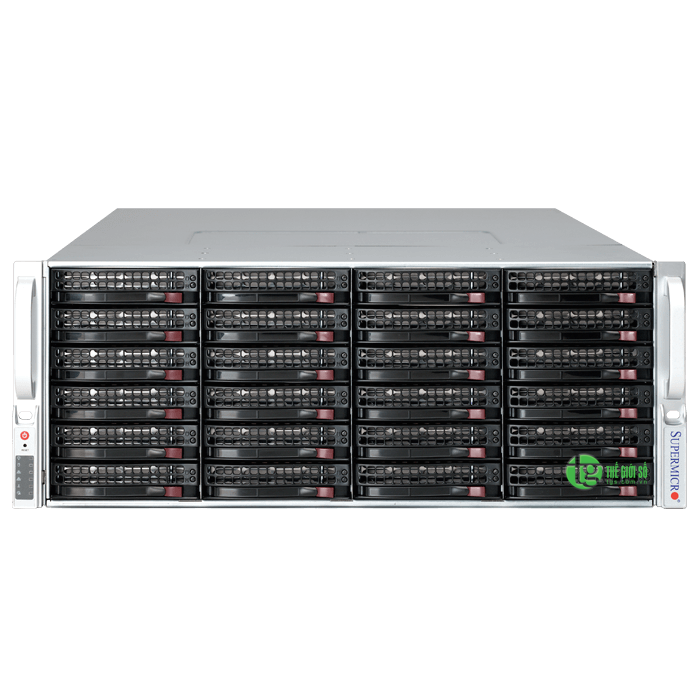

Supermicro SuperStorage Server 6048R-E1CR36H CHÍNH HÃNG, GIÁ RẺ TẠI THẾ GIỚI SỐ
KEY FEATURES Supermicro SuperStorage Server 6048R-E1CR36H
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s
2. Up to 1TB ECC DDR4 2133MHz; 16x DIMM slots
3. 1 PCI-E 3.0 x16, 6 PCI-E 3.0 x8 (slot 1 & 2 occupied by controller and JBOD expansion port)
4. Dual 10GBase-T LAN w/ Intel® X540
5. 36x 3.5" Hot-swap SAS3/SATA3 drive bays (24 front + 12 rear); 2x 2.5" optional Hot-swap drive bays (rear); 4x 2.5" internal fixed drive bays
6. SAS3 via LSI 3108 AOC (HW RAID 0, 1, 5, 6, 10, 50, and 60)
7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
8. 7x 80mm middle cooling fans
9. 1280W Redundant Power Supplies Platinum Level (94%)
Specifications
Product SKUs |
|
| SSG-6048R-E1CR36H | SuperServer 6048R-E1CR36H (Black) |
Motherboard |
|
| Super X10DRH-iT | |
Processor/Cache |
|
| CPU | Intel® Xeon® processor E5-2600 v3 family (up to 145W TDP) * Dual Socket R3 (LGA 2011) |
| Cores / Cache | Up to 18 Cores / Up to 45MB Cache |
| System Bus | QPI up to 9.6 GT/s |
| Note | * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. |
System Memory |
|
| Memory Capacity | 16x 288-pin DDR4 DIMM slots Up to 1TB ECC LRDIMM, 512GB ECC RDIMM |
| Memory Type | 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit |
| DIMM Sizes | RDIMM: 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors |
On-Board Devices |
|
| Chipset | Intel® C612 chipset |
| SAS | SAS3 (12Gbps) via LSI 3108 AOC; HW RAID RAID 0, 1, 5, 6, 10, 50, 60 |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC |
| Network Controllers | Intel® X540 Dual Port 10GbE Virtual Machine Device Queues reduce I/O overhead Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI) |
| Graphics | ASPEED AST2400 |
Input / Output |
|
| LAN | 2x RJ45 10GBase-T LAN ports 1x RJ45 Dedicated IPMI LAN port |
| USB | 2x USB 3.0 ports (rear) 2x USB 2.0 ports (rear) 1x Type A |
| VGA | 1x VGA port |
| Serial Port / Header | 1x Fast UART 16550 port / 1 Header |
System BIOS |
|
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | Plug and Play (PnP) APM 1.2 PCI 2.2 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3 UEFI |
Chassis |
|
| Form Factor | 4U Rackmount |
| Model | CSE-847BE1C-R1K28LPB |
Dimensions and Weight |
|
| Width | 17.2" (437mm) |
| Height | 7" (178mm) |
| Depth | 27.5" (699mm) |
| Weight | Net Weight: 102.5 lbs (46.4 kg) Gross Weight: 65.5 lbs (29.7 kg) |
| Available Colors | Black |
Front Panel |
|
| Buttons | Power On/Off button System Reset button |
| LEDs | Power status LED Hard drive activity LED 2x Network activity LEDs System Overheat LED Power fail LED |
Expansion Slots |
|
| PCI-Express | 1x PCI-E 3.0 x16 slot 6x PCI-E 3.0 x8 slots Slot 1 & 2 occupied by controller and JBOD Expansion Port |
Drive Bays |
|
| Hot-swap | 36x 3.5" Hot-swap SAS3/SATA3 drive bays Double-sided: 24 front + 12 rear drive bays |
| Optional | 2x 2.5" Hot-swap HDD bays (rear) Fixed internal Drive Bracket supports 1x 3.5 or 2x 2.5" devices |
Backplane |
|
| SAS3/SATA3 single expander per backplane | |
System Cooling |
|
| Fans | 7x 80mm middle cooling fans Redundant cooling |
Power Supply with Digital Switching Control & PMBus 1.2 |
|
| 1280W High-Efficiency (95%+) power supply | |
| AC Input | 1000W Output @ 100-140V, 12-8A, 50-60Hz 1280W Output @ 180-240V, 8-6A, 50-60Hz |
| DC Output | 1000W: +12V/83A; +5Vsb/4A 1280W: +12V/106.7A, +5Vsb/4A |
| Certification | Platinum Certified |
Operating Environment / Compliance |
|
| RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Standard Parts List |
|||
| Part Number | Qty | Description | |
| Motherboard / Chassis | MBD-X10DRH-iT | 1 | Super X10DRH-iT Motherboard |
| CSE-847BE1C-R1K28LPB | 1 | 4U Chassis | |
| Backplane | BPN-SAS3-826EL1 | 1 | SAS 12G single expander backplane, with LSISAS3x28 expander, support 12x 3.5 |
| Backplane | BPN-SAS3-846EL1 | 1 | SAS 12G single expander backplane, with LSI SAS3 expander, support 24x 3.5 |
| Cable 1 | CBL-0296L | 3 | 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG |
| Cable 2 | CBL-SAST-0531-01 | 4 | Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s [FCI],RoHS/REACH |
| Cable 3 | CBL-SAST-0532 | 2 | Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s,HF,RoHS/REACH,PBF |
| Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS |
| Parts | MCP-260-00042-0N | 1 | STD I/O shield for X9 socket R server MB with Gasket. |
| Heatsink / Retention | SNK-P0048PS | 2 | 2U Passive CPU Heat Sink for X9, X10 Generation Systems Equipped w/ a Narrow ILM MB |
| Power Supply | PWS-1K28P-SQ | 2 | 1U 1280W, redundant single output power supply |
| Add On Card | AOC-S3108L-H8IR-O-P | 1 | SAS-3, GEN-3 RAID card. Supports 12Gb and RAID 0, 1, 5, 6, 10, 50, and 60. Includes 2GB memory |
| Add On Module | AOM-SAS3-8I8E-LP | 1 | 8-port Mini SAS HD Int-to-Ext cable adapter w/ LP bracket |
Optional Parts List |
|||
| Part Number | Qty | Description | |
| 3108 Cache Protection | BTR-TFM8G-LSICVM02 BKT-BBU-BRACKET-05 |
1 1 |
SuperCap Module Mounting PCIe Card |
| Drive Tray | MCP-220-84701-0N CBL-0179L CBL-0082L |
1 2 1 |
Internal drive tray for one 3.5" HDD or two 2.5" HDD SATA cable 70cm Y split SATA power extension |
| Peripheral Drives | MCP-220-82609-0N | - | Rear 2 X 2.5" HDD kit (cables & backplane included) |
