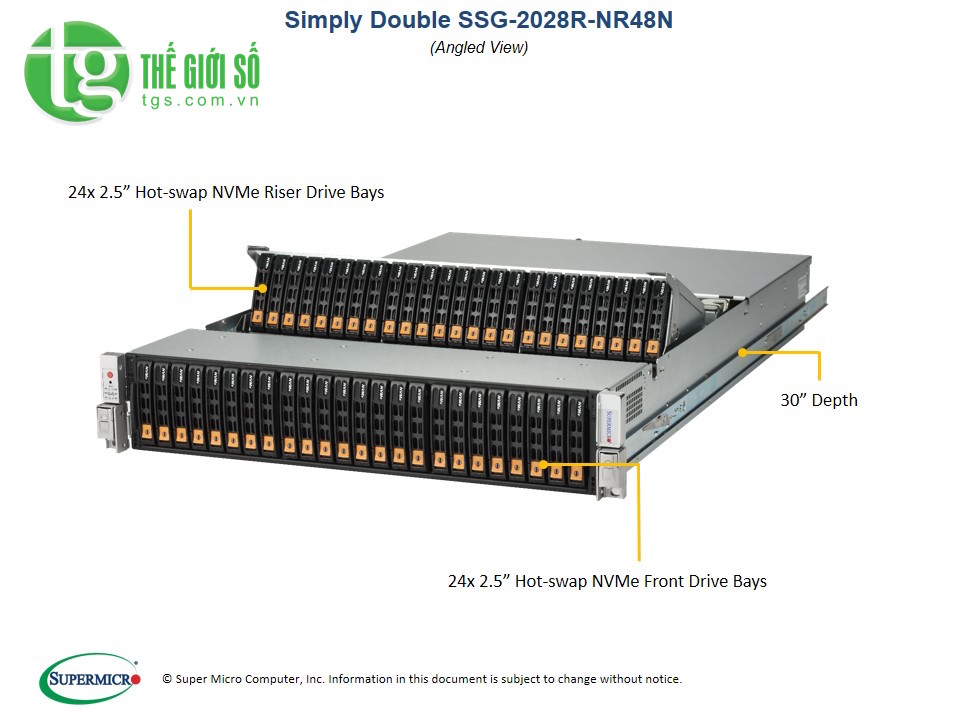

Supermicro SuperStorage Server 2028R-NR48N


Số lượng:
Giá bán: 0 VND

Supermicro SuperStorage Server 2028R-NR48N CHÍNH HÃNG, GIÁ RẺ TẠI THẾ GIỚI SỐ

KEY FEATURES Supermicro SuperStorage Server 2028R-NR48N

1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s
2. Up to 1.5TB ECC DDR4, up to 2133MHz ; 24x DIMM slots
3. 2 PCI-E 3.0 x16, 1 PCI-E 3.0 x8
4. SIOM for flexible networking options
5. 48x 2.5" Hot-swap NVMe bays; 2x 2.5" rear Hot-swap drive bays
6. Server remote management: IPMI 2.0  / KVM over LAN / Media over LAN
7. 5x 8cm hot-swap redundant PWM fans
8. 1600W Redundant Power Supplies Titanium Level (96%)

Specifications Supermicro SuperStorage Server 2028R-NR48N

Product SKUs

SSG-2028R-NR48N SuperServer 2028R-NR48N (Black)

Motherboard

Super X10DSC+

Processor/Cache

CPU Intel® Xeon® processor E5-2600 v3 family (up to 160W TDP) *
Dual Socket R3 (LGA 2011)
Cores / Cache Up to 18 Cores / Up to 45MB Cache
System Bus QPI up to 9.6 GT/s
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.


System Memory

Memory Capacity 24x 288-pin DDR4 DIMM slots
Up to 1.5TB ECC LRDIMM, RDIMM
Memory Type 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes 64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage 1.2 V
Error Detection Corrects single-bit errors

On-Board Devices

Chipset Intel® C612 chipset
SATA SATA3 (6Gbps) with RAID 0, 1, 5, 10
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Connectivity SIOM support for flexible networking options
Graphics ASPEED AST2400 BMC

Input / Output

LAN LAN ports via SIOM Add-On-Card:
(See SIOM Compatibility Matrix)
USB 3x USB 3.0 ports (2 rear, 2 front, 1 Type A)
Video 1x VGA Connector
Serial Port 1x Fast UART 16550 port / 1 Header

Chassis

Form Factor 2U Rackmount
Model CSE-226STS-R1K62P1

Dimensions and Weight

Height 3.5" (89mm)
Width 17.2" (437mm)
Depth 30.2" (767mm). With Cable Management Arm Installed: 35.2" (895mm)
Available Color Black

Front Panel

Buttons Power On/Off button
System UID button
LEDs Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED
Power fail LED

Expansion Slots

PCI-Express 2x PCI-E 3.0 x16 slots
1x PCI-E 3.0 x8 slots
Slot 3 Occupied by NVMe AOC

Drive Bays

Hot-swap 48x 2.5" Hot-swap NVMe drive bays
2x 2.5" rear Hot-swap drive bays
Backplane
Two 24 port NVMe backplanes, each supporting up to 24x 2.5" NVMe SSDs

System Cooling

Fans 5x 8cm hot-swap redundant PWM cooling fans

Power Supply

1600W Redundant Titanium Level AC Power Supplies with PMbus
Input 100-127 V, 50-60 Hz
200-240 V, 50-60 Hz
+12V Max: 83.3A & Min: 0A (100Vac-127Vac)
Max: 133A & Min: 0A (200Vac-240Vac)
12V SB Max: 2.1A
Min: 0A
Certification Titanium Level



Standard Parts List

  Part Number Qty Description
Motherboard / Chassis MBD-X10DSC+ 1 Super X10DSC+ Motherboard
CSE-226STS-R1K62P1 1 2U Rackmount
Add-on Card / Module AOC-SLG3-4E4R-P 1 NVMe AOC by 16,HF,RoHS/REACH
Backplane BPN-NVME3-216EB 2 BPN-NVMe3-216A-S4 Backplane Base Board
Backplane BPN-NVME3-216EL 4 PCIe Gen3x16 input to PLX9765 to support 12x NVMe port
Cable 1 CBL-SAST-0850 2 OCuLink to MiniSAS HD V.91,INT,PCIe NVMe SSD, 37CM,15D15F7D,34AWG
Cable 2 CBL-SAST-0847 2 OCuLink v.91,INT,PCIe NVMe SSD, 76CM, 11D38F27D,34AWG
Cable 3 CBL-SAST-0848 2 OCuLink v.91,INT,PCIe NVMe SSD, 95CM, 11D38F46D,34AWG
Cable 4 CBL-SAST-0849 2 OCuLink to MiniSAS Hd V.91,INT,PCIe NVMe SSD, 57CM,15D15F27D,34AWG
Parts MCP-110-00015-0N 8 Pan head screw, #6-32 x 6L
Parts MCP-220-82609-0N 1 Rear 2.5 x 2 Hot swap HDD kit for 216B/826B/417B/846X/847B
Drive Tray(s) MCP-220-00127-0B 48 Black gen-3 2.5 NVMe drive tray, Orange tab with lock (for hotswap NVMe drive),HF,RoHS/REACH
Heatsink / Retention SNK-P0047PS 2 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
Power Supply PWS-1K62A-1R 2 AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH



Optional Parts List

  Part Number Qty Description
SIOM Network Card(s) AOC-MGP-I2 - SIOM 2-port GbE, Intel i350-AM2
AOC-MGP-I4 - SIOM 4-port GbE, Intel i350-AM4
AOC-MTGN-I2S - SIOM 2-port 10G SFP+, Intel 82599ES
AOC-MTG-I4S - SIOM 4-port 10G SFP+, Intel XL710
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
