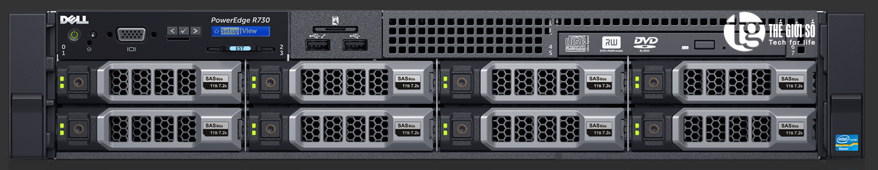

SERVER DELL POWEREDGE R730 - 2X E5-2609V3 GIÁ RẼ, UY TÍN, CHẤT LƯỢNG tại THẾ GIỚI SỐ
KEY FEATURES MÁY CHỦ DELL POWEREDGE R730 - 2X E5-2609V3 * 2 x Intel Xeon 6-Core E5-2609v3 1.9GHz, 15M Cache, 6.4GT/s QPI
* 2 x 8GB DDR4-2133 ECC RDIMMs
* 2 x 600GB 15K RPM SAS 3.5 " Hot Plug Hard Drive
* Dell™ PERC H730 Integrated RAID Controller 1GB Cache Hardware RAID 0,1,5,6,10,50,60
* Broadcom quad-port Gigabit Ethernet
* Dual, Hot-plug, Redundant Power Supply (1+1), 750W
MÁY CHỦ DELL POWEREDGE R730 - 2X E5-2609V3
Processor
- Intel® Xeon® E5 2600 v3 processors
Operating System
- Microsoft Windows® Server 2008/2012 SP2, x86/x64 (x64 includes Hyper-VTM )
Microsoft Windows® Server 2008/2012 R2, x64 (includes Hyper-VTM v2)
Microsoft® Windows® HPC Server 2008
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux
VMware® ESX
Chipset
- Intel C610 series chipset
Memory1
- Up to 768GB (24 DIMM slots): 4GB/8GB/16GB/32GB DDR4 up to 2133MT/s
Embedded Hypervisor (Optional)
-
Optional supported hypervisors:
Microsoft® Windows Server® 2012, with Hyper-V®
Citrix® XenServer®
VMware® vSphere® ESXiTM
Storage
- HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA
16 x 2.5” – up to 29TB via 1.8TB hot-plug SAS hard drives”
8 x 3.5” – up to 48TB via 6TB hot-plug NL SAS hard drives”
Drive Bays
- Internal hard drive bay and hot-plug backplane:
Up to 16 x 2.5” HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA
Up to 8 x 3.5” HDD: SAS, SATA, Near-line SAS SSD: SAS, SATA
Slots
- Slot configuration #1:
Slot 1: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett
Slot 2: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett
Slot 3: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile brackett
Slot 4: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
Slot 5: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
Slot 6: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
Slot 7: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
Dedicated RAID card slot
Slot configuration #2:
Slot 1: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
Slot 2: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
Slot 3: Half Length, Half Height, PCIe Gen3 x8 (x16 connector) low profile bracket
Slot 4: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
Slot 5: Full Length, Full Height, PCIe Gen3 x8 (x16 connector)
Slot 6: Full Length, Full Height, PCIe Gen3 x16 (x16 connector)
Dedicated RAID card slot
RAID Controllers
- Internal:
PERC S130
PERC H330
PERC H730
PERC H730P
External:
PERC H830
Network Controller
- 4 x 1Gb, 2 x 1Gb + 2 x 10Gb, 4 x 10Gb
Communications
- Broadcom® 5719 quad-port 1Gb NIC
Broadcom 5720 dual-port 1Gb NIC
Broadcom 57810 dual-port 10Gb DA/SFP+ CNA
Broadcom 57810 dual-port 10Gb Base-T network adapter
Intel® Ethernet I350 dual-port 1Gb server adapter
Intel Ethernet I350 quad-port 1Gb server adapter
Intel Ethernet X540 dual-port 10GBASE-T server adapter
Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapter
Mellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapter
Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA
Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA
Emulex LPe16000B, single-port 16Gb Fibre Channel HBA
Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA
Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA
QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA
QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA
Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height
Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height
Power
- 1600W AC, 86 mm (Platinum)
1100W AC, 86 mm (Platinum)
1100W DC, 86 mm (Gold)
750W AC, 86 mm (Platinum)
750W AC, 86 mm (Diamond)
495W AC, 86 mm (Platinum)
Availability
- ECC memory
Hot-plug hard drives
Hot-plug redundant cooling
Hot-plug redundant power
iDRAC8
Internal Dual SD Module
Single Device Data Correction (SDDC)
Spare Rank
Tool-less chassis
Support for high availability clustering and virtualization
Proactive systems management alerts
iDRAC8 with Lifecycle Controller
Chassis
- Dimensions: H: 8.73 cm (3.44 in.) x W: 44.40 cm (17.49 in.) x D: 68.40 cm (26.92 in.)
Management
- Dell OpenManage portfolio of systems management solutions, including:
OpenManage Essentials console
iDRAC8 with Lifecycle Controller
iDRAC Direct
iDRAC Quick Sync
OpenManage Mobile
Regulatory
- Product Safety, EMC and Environmental Datasheets
Dell Regulatory Compliance Home Page
Dell and the Environment
