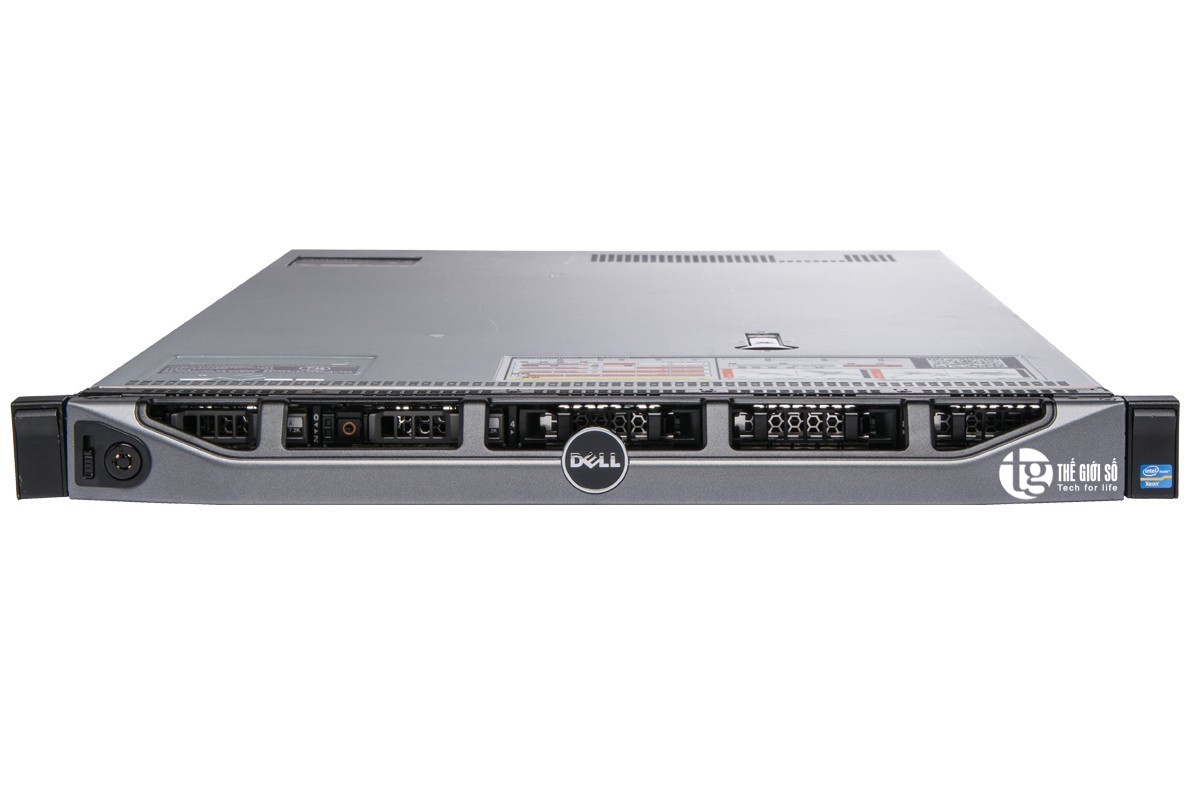

SERVER DELL POWEREDGE R620 E5-2670 CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI THẾ GIỚI SỐ

KEY FEATURES MÁY CHỦ DELL POWEREDGE R620 E5-2670

Feature PowerEdge R620 technical specification
Form factor 1U rack
Processors Intel® Xeon® processor E5-2670 product family
Processor sockets 2
Internal interconnect 2 x Intel QuickPath Interconnect (QPI) links: 6.4 GT/s, 7.2 GT/s, 8.0 GT/s
Cache 2.5MB per core; core options: 2, 4, 6, 8
Chipset Intel C600

System Memory: 32GB
Memory1 Up to 768GB (24 DIMM slots): 2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MT/s
I/O slots
3 PCIe slots: (10-drive-bay configuration is available only with the 3 PCIe slot option)
Two x16 slots with x16 bandwidth, half-height, half-length
One x16 slot with x8 bandwidth, half-height, half-length
or
2 PCIe slots:
One x16 slot with x16 bandwidth, full-height, 3/4 length
One x16 slot with x16 bandwidth (or x8 with one processor only), half-height, half-length
RAID controller : H310
Internal controllers:
PERC S110 (SW RAID)
PERC H310
PERC H710
PERC H710P
External HBAs (RAID):
PERC H810
External HBAs (non-RAID):
6Gbps SAS HBA
Drive bays Up to ten 2.5” hot-plug SAS, SATA, or SSD or up to four hot-plug 2.5” SAS, SATA, or SSD + two PCIe SSD
Maximum internal storage1 Up to 10TB
Hard drives
Hot-plug hard drive options:
2.5” PCIe SSD, SAS SSD, SATA SSD, SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K)
Self-encrypting drives available
Embedded NIC
Broadcom® 5720 Quad Port 1GbE BASE-T (no TOE or iSCSI offload)
Intel I350 Quad Port 1GbE BASE-T (no TOE or iSCSI offload)
Intel X540 Dual Port 10GbE BASE-T with 2 x 1GbE (FCoE capability enabled on the 10GbE ports)
Broadcom 57800S Dual Port 10GbE Base-T with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports
Broadcom 57800S Dual Port 10GbE SFP+ with 2 x 1GbE (TOE and iSCSI offload available on 10GbE ports
Power supply Titanium efficiency, hot-plug redundant 750W power supply; Platinum efficiency, hot-plug redundant 495W or 1100W
power supplies; 1100W DC power supply; Auto-ranging power supplies
Availability
High-efficiency, hot-plug, redundant power supplies; hot-plug hard drives; TPM; dual internal SD support; hot-plug,
redundant fans; optional bezel; information tag; ECC memory; interactive LCD screen; extended thermal support;
ENERGY STAR® compliant; switch independent partitioning
Remote management
iDRAC7 with Lifecycle Controller
iDRAC7 Express (default), iDRAC7 Enterprise (upgrade option),
8GB vFlash media (upgrade option), 16GB vFlash media (upgrade option)
Systems management
IPMI 2.0 compliant
Dell OpenManage™ Essentials and Dell Management Console
Dell OpenManage Power Center
Dell OpenManage Connections:
• OpenManage Integration Suite for Microsoft® System Center
• Dell plug-in for VMware® vCenter™
• HP Operations Manager, IBM Tivoli® Netcool® , and CA Network and Systems Management
Rack support
• ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled
mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm
• ReadyRails static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled
mounting in 4-post threaded and 2-post (Telco) racks
Operating systems
Microsoft® Windows Server® 2012
Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V® v2)
Microsoft Windows® Small Business Server 2011
SUSE® Linux® Enterprise Server
Red Hat® Enterprise Linux®
Virtualization options:
Citrix® XenServer™
VMware vSphere™ ESX and ESXi
Red Hat Enterprise Vitualization®
For more information on the specific versions and additions, visit Dell.com/OSsupport.
