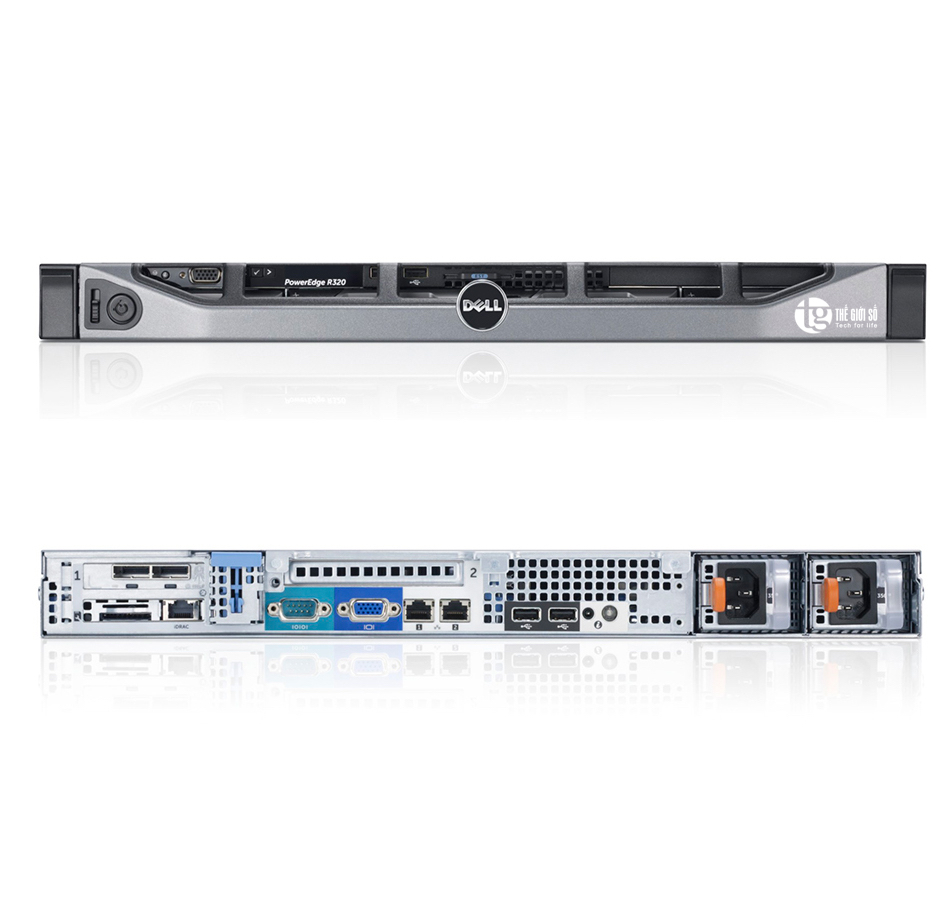

SERVER DELL POWEREDGE R320 E5-2407V2, 2.4GHz, 10M Cache, 6.4GT/s QPI

Số lượng:

Giá bán: 0 VND

SERVER DELL POWEREDGE R320 E5-2407v2 CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ tại THẾ GIỚI SỐ

KEY FEATURES MÁY CHỦ DELL POWEREDGE R320 E5-2407v2 Server 3.5" Chassis

Dell PowerEdge R320 Server 3,5" Chassis (Hot-Plug HDD)
    * Intel Xeon 4-Core E5-2407v2 2.4GHz, 10M Cache, 6.4GT/s QPI
    * 1 x 8GB DDR3 1600 240-Pin DDR3 ECC RDIMMs (PC3 12800)
    * Non x 8 HDD SSD/SATA/SAS Enterprise 3.5"
    * Dell™ PERC H310 RAID Controller SATA/SAS (Hardware RAID 0, 1, 5, 10, 50)
    * Broadcom® 5720 Dual Port 1Gb Gigabit Ethernet
    * 1 x Power Supply 550W

MÁY CHỦ DELL POWEREDGE R320 E5-2407V2

Processor

Intel^® Xeon^® processor E5-2400 and E5-2400 v2 product families
Intel Xeon processor E5-1410
Intel Pentium^® processor 1400 product family

Processor sockets
1

Cache
2.5MB per core; core options: 4, 6, 8, 10

Internal interconnect
Intel DMI 2.0

Operating System

Microsoft® Windows Server® 2012
Microsoft Windows Server 2012 Essentials
Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V®)
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux®
Virtualization options:
Citrix® XenServer®
VMware® vSphere® ESXi ™
Red Hat Enterprise Virtualization®

Chipset

Intel C602

Memory¹

Up to 192GB (6 DIMM slots) 2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MT/s

Storage

Maximum internal storage
Up to 16TB

Hard drives
Hot-plug hard drive options:
2.5” SATA, nearline SAS, SAS (15K, 10K), SAS SSD, SATA SSD, SAS 512n (15K)
3.5” SATA, nearline SAS, SAS (15K)

Cabled hard drive options:
3.5” SATA, nearline SAS, SAS (15K)
Self-encrypting drives available

Drive Bays

Up to eight 2.5” hot-plug SAS, SATA or SSD
Up to four 3.5" hot-plug SAS, SATA or SSD

Slots

2 PCIe slots:
One x8 PCIe slot with x4 bandwidth, half-length, half-height
One x16 PCIe slot with x16 bandwidth, half-length, full-height

RAID Controllers

Internal controllers:
PERC S110 (SW RAID)
PERC H310
PERC H710

External HBAs (RAID):
PERC H810

External HBAs (non-RAID):
6Gbps SAS HBA

Network Controller

Embedded NIC:
Broadcom® 5720 Dual Port 1Gb LOM

I/O adapter options:

1Gb Ethernet:
Broadcom 5720 Dual Port 1Gb NIC
Broadcom 5719 Quad Port 1Gb NIC
Intel I350 Dual Port 1Gb stand-up adapter
Intel I350 Quad Port 1Gb stand-up adapter

10Gb Converged Ethernet:
Brocade® BR1020 Dual Port 10Gb CNA
QLogic® QLE8262 Dual Port 10Gb DA/SFP+
Broadcom 57810S Dual Port 10Gb Base-T CNA
Broadcom 57810S Dual Port 10Gb DA/SFP+ CNA

10Gb Ethernet:
Intel X520 Dual Port 10Gb DA/SFP+ server adapter
Intel X540 Dual Port 10Gb Base-T adapter

FC8/FC4 HBA:
QLogic QLE2460 4Gb Single Port FC HBA
QLogic QLE2462 4Gb Dual Port FC HBA
QLogic QLE2560 8Gb Single Port FC HBA
QLogic QLE2562 8Gb Dual Port FC HBA
Emulex® LPe-12000-E 8Gb Single Port FC HBA
Emulex LPe-12002-E 8Gb Dual Port FC HBA
Brocade 815 8Gb Single Port FC HBA
Brocade 825 8Gb Dual Port FC HBA

Power

Platinum efficiency, hot-plug, redundant 350W power supply
Bronze efficiency, cabled 350W power supply
Auto-ranging power supplies

Availability

High-efficiency, hot-plug, redundant power supplies; hot-plug hard drives; TPM; dual internal SD support; fan fault tolerance; optional bezel; luggage tag; ECC memory, interactive LCD screen; ENERGY STAR^® compliant

Chassis

Form factor
1U rack

Management

Remote management

Basic management (default)
iDRAC7 with Lifecycle Controller
iDRAC7 Express (upgrade option), iDRAC7 Enterprise (upgrade option) 8GB or 16GB vFlash media (upgrade options)

Systems management

IPMI 2.0 compliant
Dell OpenManage™ Essentials and Dell Management Console
Dell OpenManage Power Center

Dell OpenManage Connections:
OpenManage Integration Suite for Microsoft^® System Center
Dell plug-in for VMware^® vCenter™
HP Operations Manager, IBM Tivoli^® Netcool^®, and CA Network and Systems Management

Rack Support

ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm

ReadyRails static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post (Telco) racks
