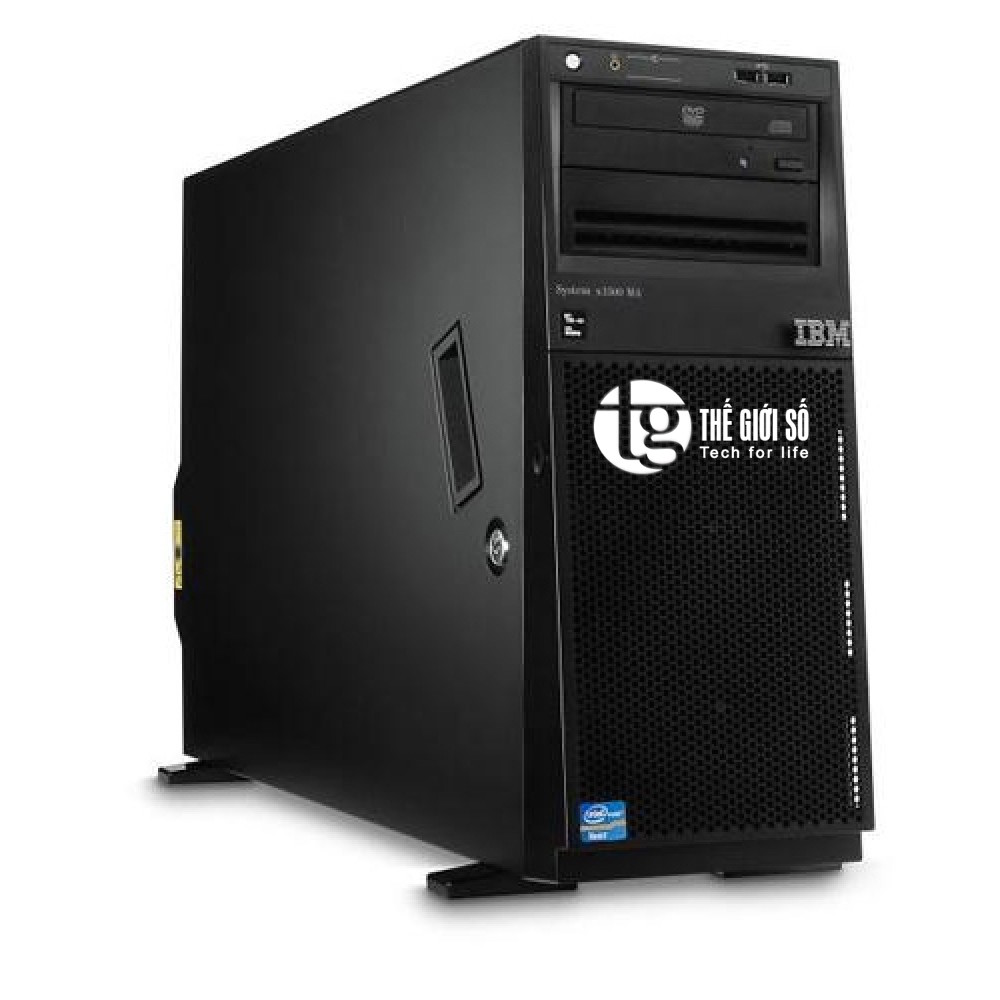

SERVER LENOVO IBM System X3500 M4 Intel® Xeon® 6-Core Processor E5-2609 v2, 2.4GHz, 10MB, LGA2011

MODEL

IBM® System® x3500 M4 (Tower/5U)

Chipset

Intel C602 chipset

Processor

1 x Intel® Xeon® 4-Core Processor E5-2609, 2.40GHz, 10MB, LGA2011

* Dual 2011-pin LGA Sockets R
* Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
o Intel® Xeon® Processor E5-2600 Series

System Bus

* Intel QuickPath Interconnect up to 8.0 GT/s

Operating systems supported

* Microsoft Windows Server 2008 R2 and 2008, Red Hat Enterprise Linux 5 and 6, SUSE Linux Enterprise Server 10 and 11, VMware ESX 4.1 and VMware ESXi 4.1 embedded hypervisor, VMware vSphere 5.

System Memory

1 x IBM 4GB PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM

24 x 240-pin DIMM sockets

Up to 768 GB (UDIMM/RDIMM/LRDIMM*/HCDIMM)

DIMM Sizes * 1GB, 2GB, 4GB, 8GB, 16GB, 32GB

Storage

Non HDD

8/32 bay(2.5') hot-swap SAS/SATA/SSD
Up to 32 TB (2.5" model) or 24 TB (3.5" model) SAS/SATA

Raid Controller

IBM ServeRAID M1115 SAS/SATA Controller (RAID-0, -1, -10)

Network Controller

Intel I350AM4 Quad Port GbE

Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Intel® I/OAT support for fast, scaleable, and reliable networking

Graphics

Integrated Matrox G200eR2 with 16 MB memory

Expansion Slots

Up to eight PCIe expansion slots; Six PCIe standard with additional two PCIe slots when the second processor is populated. Optional PCI-X available via interposer conversion kit.

Drives

DVD ROM

Power

1 x IBM 750W Redundant Power Supply Unit

Form Fact

Tower Server

Systems management

Automatic Server Restart; Predictive Failure Analysis on processors, voltage regulator modules (VRMs), fans and memory; light path diagnostics; Integrated Management Module 2; optional remote presence; IBM Systems Director and IBM Systems Director Active Energy Manager, IMM2 with dedicated management port
