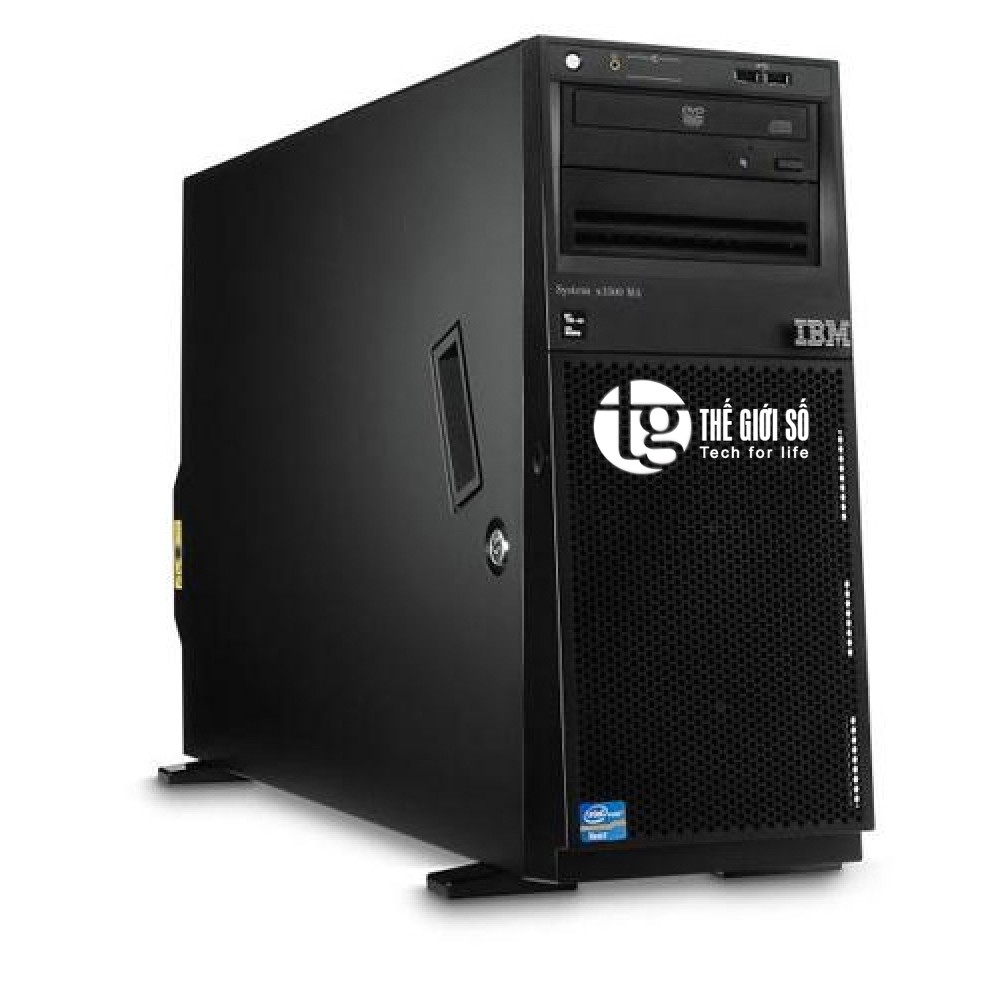

SERVER LENOVO IBM System X3500 M4 - E5-2620v2 Intel® Xeon® 6-Core Processor E5-2620, 2.1GHz, 15MB, LGA2011

Số lượng:

Giá bán: 0 VND

SERVER LENOVO IBM System X3500 M4 - E5-2620v2 CHÍNH HÃNG, CHẤT LƯỢNG, GIÁ RẺ TẠI THẾ GIỚI SỐ
KEY FEATURES MÁY CHỦ SERVER LENOVO IBM System X3500 M4 - E5-2620v2 Intel® Xeon® 6-Core Processor E5-2620, 2.1GHz, 15MB, LGA2011

MODEL		IBM® System® x3500 M4 (Tower/5U)

Chipset		Intel C602 chipset
Processor		1 x Intel® Xeon® 6-Core Processor E5-2620v2, 2.1GHz 15M 7.2GT/s QPI
		* Dual 2011-pin LGA Sockets R * Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below: o Intel® Xeon® Processor E5-2600 v2 Series
System Bus		* Intel QuickPath Interconnect up to 8.0 GT/s
Operating systems supported		* Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
System Memory		1 x 8GB PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM
		24 x 240-pin DIMM sockets
		Up to 768 GB (UDIMM/RDIMM/LRDIMM/HyperCloud DIMM)
		DIMM Sizes * 1GB, 2GB, 4GB, 8GB, 16GB, 32GB
Storage		Non HDD
		8/32 bay(2.5') hot-swap SAS/SATA/SSD Up to 51.2 TB (2.5" model) or 32 TB (3.5" model) SAS/SATA
Raid Controller		ServeRAID M1115 SAS/SATA Controller (RAID-0, -1, -10)
Network Controller		Intel I350AM4 Quad Port GbE
		*Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output*
		Intel® I/OAT support for fast, scaleable, and reliable networking
Graphics		Integrated Matrox G200eR2 with 16 MB memory
Expansion Slots		Up to eight slots with two processors and six slots when one CPU is installed. All slots are PCIe 3.0 slots except Slot 1, which is a Gen 2 slot: Slot 1: PCIe x8 (x4 wired); full-height, half-length (supports optional PCI-X 64 bit/133 MHz interposer card) Slot 2: PCIe x8; full-height, half-length Slot 3: PCIe x8; full-height, full-length Slot 4: PCIe x8 (x4 wired); full-height, full-length Slot 5: PCIe x16; full-height, full-length Slot 6: PCIe x8 (x4 wired); full-height, full-length Slot 7: PCIe x16; full-height, full-length Slot 8: PCIe x16; full-height, full-length
Drives		DVD ROM
Power		1 x IBM 750W Redundant Power Supply Unit
Form Fact		Tower Server
Systems management		Automatic Server Restart; Predictive Failure Analysis on processors, voltage regulator modules (VRMs), fans and memory; light path diagnostics; Integrated Management Module 2; optional remote presence; IBM Systems Director and IBM Systems Director Active Energy Manager, IMM2 with dedicated management port
MODEL	IBM® System® x3500 M4 (Tower/5U)

Chipset	Intel C602 chipset
Processor	1 x Intel® Xeon® 4-Core Processor E5-2609v2, 2.5GHz 10M 6.4GT/s QPI
	* Dual 2011-pin LGA Sockets R * Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below: o Intel® Xeon® Processor E5-2600 v2 Series
System Bus	* Intel QuickPath Interconnect up to 8.0 GT/s
Operating systems supported	* Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
System Memory	1 x 4GB PC3-10600 CL9 ECC DDR3 1333MHz LP RDIMM
	24 x 240-pin DIMM sockets
	Up to 768 GB (UDIMM/RDIMM/LRDIMM/HyperCloud DIMM)
	DIMM Sizes * 1GB, 2GB, 4GB, 8GB, 16GB, 32GB
Storage	Non HDD
	8/32 bay(2.5') hot-swap SAS/SATA/SSD Up to 51.2 TB (2.5" model) or 32 TB (3.5" model) SAS/SATA
Raid Controller	ServeRAID M1115 SAS/SATA Controller (RAID-0, -1, -10)
Network Controller	Intel I350AM4 Quad Port GbE
	*Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output*
	Intel® I/OAT support for fast, scaleable, and reliable networking
Graphics	Integrated Matrox G200eR2 with 16 MB memory
Expansion Slots	Up to eight slots with two processors and six slots when one CPU is installed. All slots are PCIe 3.0 slots except Slot 1, which is a Gen 2 slot: Slot 1: PCIe x8 (x4 wired); full-height, half-length (supports optional PCI-X 64 bit/133 MHz interposer card) Slot 2: PCIe x8; full-height, half-length Slot 3: PCIe x8; full-height, full-length Slot 4: PCIe x8 (x4 wired); full-height, full-length Slot 5: PCIe x16; full-height, full-length Slot 6: PCIe x8 (x4 wired); full-height, full-length Slot 7: PCIe x16; full-height, full-length Slot 8: PCIe x16; full-height, full-length
Drives	DVD ROM
Power	1 x IBM 750W Redundant Power Supply Unit
Form Fact	Tower Server
Systems management	Automatic Server Restart; Predictive Failure Analysis on processors, voltage regulator modules (VRMs), fans and memory; light path diagnostics; Integrated Management Module 2; optional remote presence; IBM Systems Director and IBM Systems Director Active Energy Manager, IMM2 with dedicated management port
