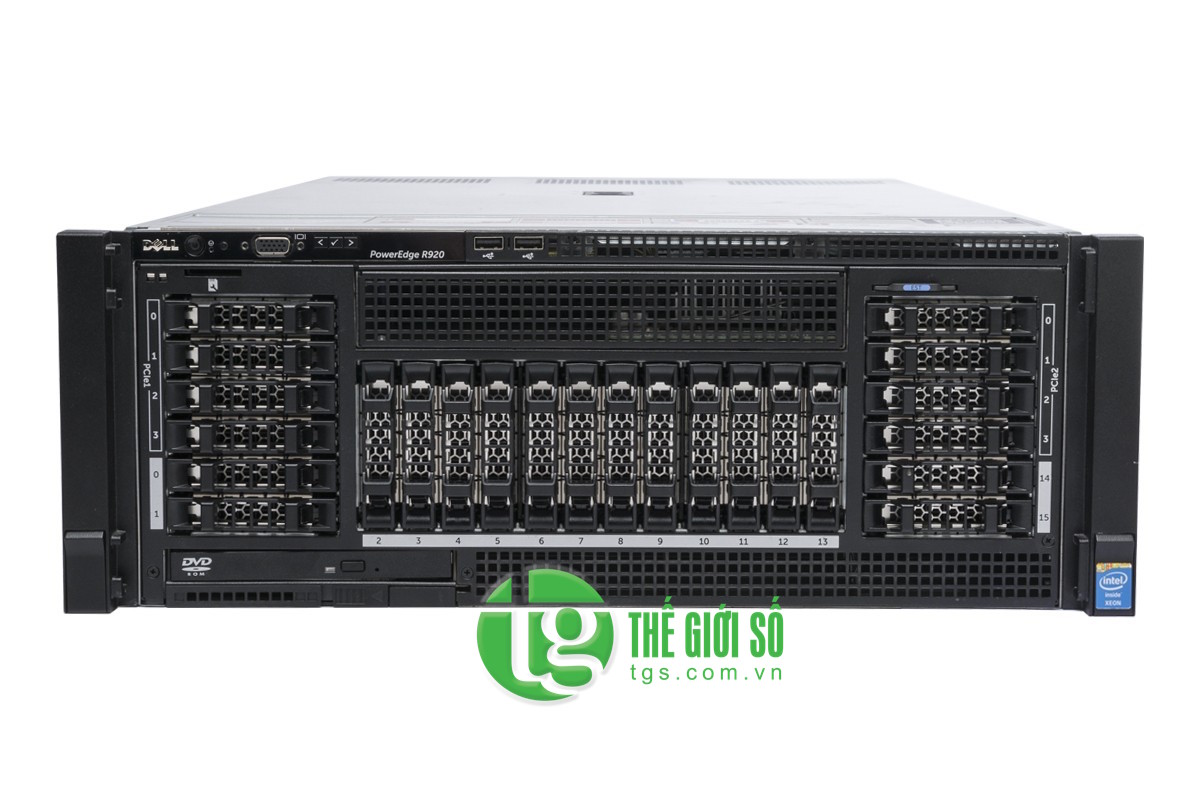

Dell PowerEdge R920/ Ram 128GB/ Raid H730p (0,1,5,10..)/ 4x PS
|
CPU: 2x 10 Core E7-4830V2 (2.2GHz, 20M Cache)
RAM: 128GB DDR3-1600Mhz (Up to 6TB)
HDD: Option HDD SAS/SATA 2.5" (Upto 24x 2.5" SAS/SATA/SSD)
RAID: PERC H730P 12GB/s Raid (0,1,5,10.50..)
NIC: Broadcom 5720 Quad port Ethernet 1GB
DVD: Option (Chưa kèm)
Power Supply: 4x 1100W Hot plug
Rail kit: Yes (Có kèm theo)
Hàng nhập khẩu trực tiếp từ Mỹ.
|
|
Feature
|
Server Dell PowerEdge R920 technical specification
|
|
Form factor
|
Rack 4U
|
|
Processors Server R920 CPU 2x E7-4830v2
|
Intel® Xeon® processor E7-4800 product family
|
|
Processor sockets
|
4
|
|
Memory
|
- Up to 6TB (96 DIMM slots):4GB/8GB/16GB/32GB/64GB DDR3L, RDIMM, LR-DIMM up to 1600MT/s
|
|
I/O slots
|
- I/O slots:
Up to 10 PCIe slots; 8 PCIe 3.0, + 1 RAID slot, + 1 NDC slot + 2 optional PCIe slots
|
|
RAID controller Server Dell R920 CPU 2x E7-4830v2
|
Internal controllers:
PERC H730P
External controllers:
PERC H8106Gbps SAS HBA
|
|
Drive bays
|
- 24 x 1.2TB HDD or
16 x 1.2TB HDD + 8 x 1.6TB PowerEdge Express Flash NVMe PCIe SSDs
Supported drives
Hot-plug hard drive options:
2.5” SATA/SAS SSD, SAS HDD (15K, 10K), nearline SAS HDD (7.2K)
2.5” PCIe SSDs: Dell PowerEdge NVMe Express Flash PCIe SSD
|
|
Maximum internal storage
|
Up to 24TB
|
|
Embedded NIC
|
- Embedded NICs:
Broadcom® 5720 QP 1Gb Network Daughter Card
Broadcom 57800 2x10Gb DA/SFP+ + 2x1Gb BT Network Daughter Card
Broadcom 57800 2x10Gb BT + 2x1Gb BT Network Daughter Card
Broadcom 57840S Quad Port 10Gb SFP+ Direct Attach Rack Network Daughter Card
Intel Ethernet I350 QP 1Gb Network Daughter Card
Intel X520 DP 10Gb DA/SFP+, + I350 DP 1Gb Ethernet, Network Daughter Card
Intel Ethernet X540 10Gb BT DP + I350 1Gb BT DP Network Daughter Card
|
|
Power supply
|
- Hot-plug redundant PSUs: 750W AC, 1100W AC and DC
suppliesAuto-ranging power supplies
|
|
Availability
|
- Hot-plug hard drives, hot-plug redundant power, hot-plug redundant fans, ECC memory, internal dual SD module
|
|
Management
|
- Remote management:
iDRAC7 with Lifecycle Controller
iDRAC7 Express (default)
iDRAC7 Enterprise (upgrade option)
8GB or 16GB vFlash media (upgrade options)
|
|
Systems management
|
IPMI 2.0 compliant
Dell OpenManage Essentials
Dell OpenManage Mobile
Dell OpenManage Power Center
Dell OpenManage Integrations:
Dell OpenManage Integration Suite for Microsoft System Center
Dell OpenManage Integration for VMware® vCenter
Dell OpenManage Connections:
HP Operations Manager, IBM Tivoli® Netcool®, and CA Network and Systems Management
Dell OpenManage Plug-in for Oracle Database Manager
|
