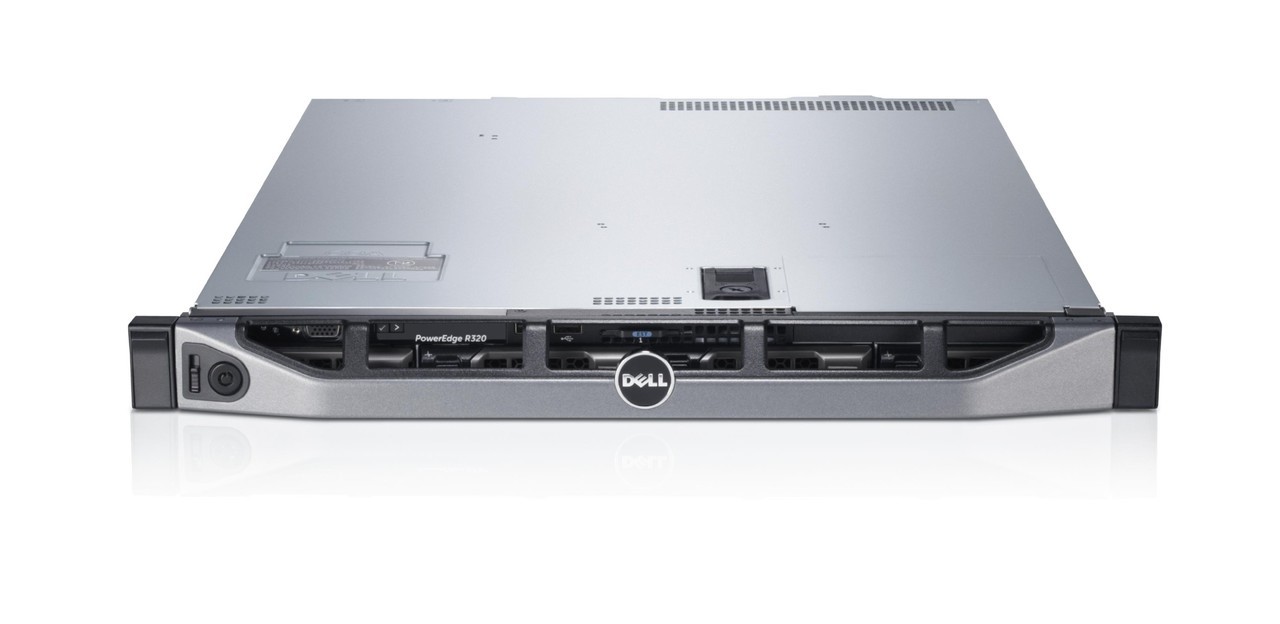

MÁY CHỦ DELL POWEREDGE R320 E5-2407v2


Số lượng:
Giá bán: 0 VND

MÁY CHỦ DELL POWEREDGE R320 E5-2407v2 CHÍNH HÃNG, GIÁ RẺ TẠI THẾ GIỚI SỐ

KEY FEATURES MÁY CHỦ DELL POWEREDGE R320 E5-2407v2

Dell PowerEdge R320 Server 3,5" Chassis (Hot-Plug HDD)
    * Intel Xeon 4-Core E5-2407v2 2.4GHz, 10M Cache, 6.4GT/s QPI
    * 1 x 8GB DDR3 1600 240-Pin DDR3 ECC RDIMMs (PC3 12800)
    * Non x 8 HDD SSD/SATA/SAS Enterprise 3.5"
    * Dell™ PERC H310 RAID Controller SATA/SAS (Hardware RAID 0, 1, 5, 10, 50)
    * Broadcom® 5720 Dual Port 1Gb Gigabit Ethernet
    * 1 x Power Supply 550W

MÁY CHỦ SERVER DELL POWEREDGE R320 E5-2407v2

Processor

  • Intel® Xeon® processor E5-2400 and E5-2400 v2 product families
    Intel Xeon processor E5-1410
    Intel Pentium® processor 1400 product family

    Processor sockets
    1


    Cache
    2.5MB per core; core options: 4, 6, 8, 10


    Internal interconnect
    Intel DMI 2.0

Operating System

  • Microsoft® Windows Server® 2012
    Microsoft Windows Server 2012 Essentials
    Microsoft Windows Server 2008 R2 SP1, x64 (includes Hyper-V®)
    Novell® SUSE® Linux Enterprise Server
    Red Hat® Enterprise Linux®
    Virtualization options:
    Citrix® XenServer®
    VMware® vSphere® ESXi ™
    Red Hat Enterprise Virtualization®

Chipset

  • Intel C602

Memory1

  • Up to 192GB (6 DIMM slots) 2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MT/s

Storage

  • Maximum internal storage
    Up to 16TB

    Hard drives
    Hot-plug hard drive options:
    2.5” SATA, nearline SAS, SAS (15K, 10K), SAS SSD, SATA SSD, SAS 512n (15K)

    3.5” SATA, nearline SAS, SAS (15K)

    Cabled hard drive options:
    3.5” SATA, nearline SAS, SAS (15K)

    Self-encrypting drives available

Drive Bays

  • Up to eight 2.5” hot-plug SAS, SATA or SSD
    Up to four 3.5" hot-plug SAS, SATA or SSD

Slots

  • 2 PCIe slots:
    One x8 PCIe slot with x4 bandwidth, half-length, half-height

    One x16 PCIe slot with x16 bandwidth, half-length, full-height

RAID Controllers

  • Internal controllers:
    PERC S110 (SW RAID)

    PERC H310
    PERC H710

    External HBAs (RAID):
    PERC H810


    External HBAs (non-RAID):
    6Gbps SAS HBA



Network Controller

  • Embedded NIC:
    Broadcom® 5720 Dual Port 1Gb LOM



    I/O adapter options:



    1Gb Ethernet:
    Broadcom 5720 Dual Port 1Gb NIC

    Broadcom 5719 Quad Port 1Gb NIC
    Intel I350 Dual Port 1Gb stand-up adapter
    Intel I350 Quad Port 1Gb stand-up adapter



    10Gb Converged Ethernet:
    Brocade® BR1020 Dual Port 10Gb CNA

    QLogic® QLE8262 Dual Port 10Gb DA/SFP+
    Broadcom 57810S Dual Port 10Gb Base-T CNA
    Broadcom 57810S Dual Port 10Gb DA/SFP+ CNA



    10Gb Ethernet:
    Intel X520 Dual Port 10Gb DA/SFP+ server adapter

    Intel X540 Dual Port 10Gb Base-T adapter



    FC8/FC4 HBA:
    QLogic QLE2460 4Gb Single Port FC HBA

    QLogic QLE2462 4Gb Dual Port FC HBA
    QLogic QLE2560 8Gb Single Port FC HBA
    QLogic QLE2562 8Gb Dual Port FC HBA
    Emulex® LPe-12000-E 8Gb Single Port FC HBA
    Emulex LPe-12002-E 8Gb Dual Port FC HBA
    Brocade 815 8Gb Single Port FC HBA
    Brocade 825 8Gb Dual Port FC HBA

Power

  • Platinum efficiency, hot-plug, redundant 350W power supply
    Bronze efficiency, cabled 350W power supply
    Auto-ranging power supplies

Availability

  • High-efficiency, hot-plug, redundant power supplies; hot-plug hard drives; TPM; dual internal SD support; fan fault tolerance; optional bezel; luggage tag; ECC memory, interactive LCD screen; ENERGY STAR® compliant

Chassis

  • Form factor
    1U rack

Management

  • Remote management

    Basic management (default)

    iDRAC7 with Lifecycle Controller
    iDRAC7 Express (upgrade option), iDRAC7 Enterprise (upgrade option) 8GB or 16GB vFlash media (upgrade options)

    Systems management

    IPMI 2.0 compliant

    Dell OpenManage™ Essentials and Dell Management Console
    Dell OpenManage Power Center

    Dell OpenManage Connections:
    OpenManage Integration Suite for Microsoft® System Center
    Dell plug-in for VMware® vCenter™
    HP Operations Manager, IBM Tivoli® Netcool®, and CA Network and Systems Management

Rack Support

  • ReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm

    ReadyRails static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded and 2-post (Telco) racks

Regulatory

Product Safety, EMC and Environmental Datasheets
Dell Regulatory Compliance Home Page
Dell and the Environment
